Technical details
watt I/O 550/370 - kg 8.8 - centrifugal - head m 18 - draft m 8 - flow rate l 80 - cast iron body - thermal protection motor protector - 1" hose connection - operating and maximum pressure bar 1.5/2 - copper motor - supplied only with cable without plug
| CDF code | model | Product | EAN code | Ferrari Code | Machieraldo Code | Vianello Code | packaging |
|---|---|---|---|---|---|---|---|
| CDF00588 | SCM22 | ELETTROPOMPA CENTRIFUGA W 550 EC550 | 8033266005887 | 121965 | 93912 | 44341 | Cardboard box |
Description

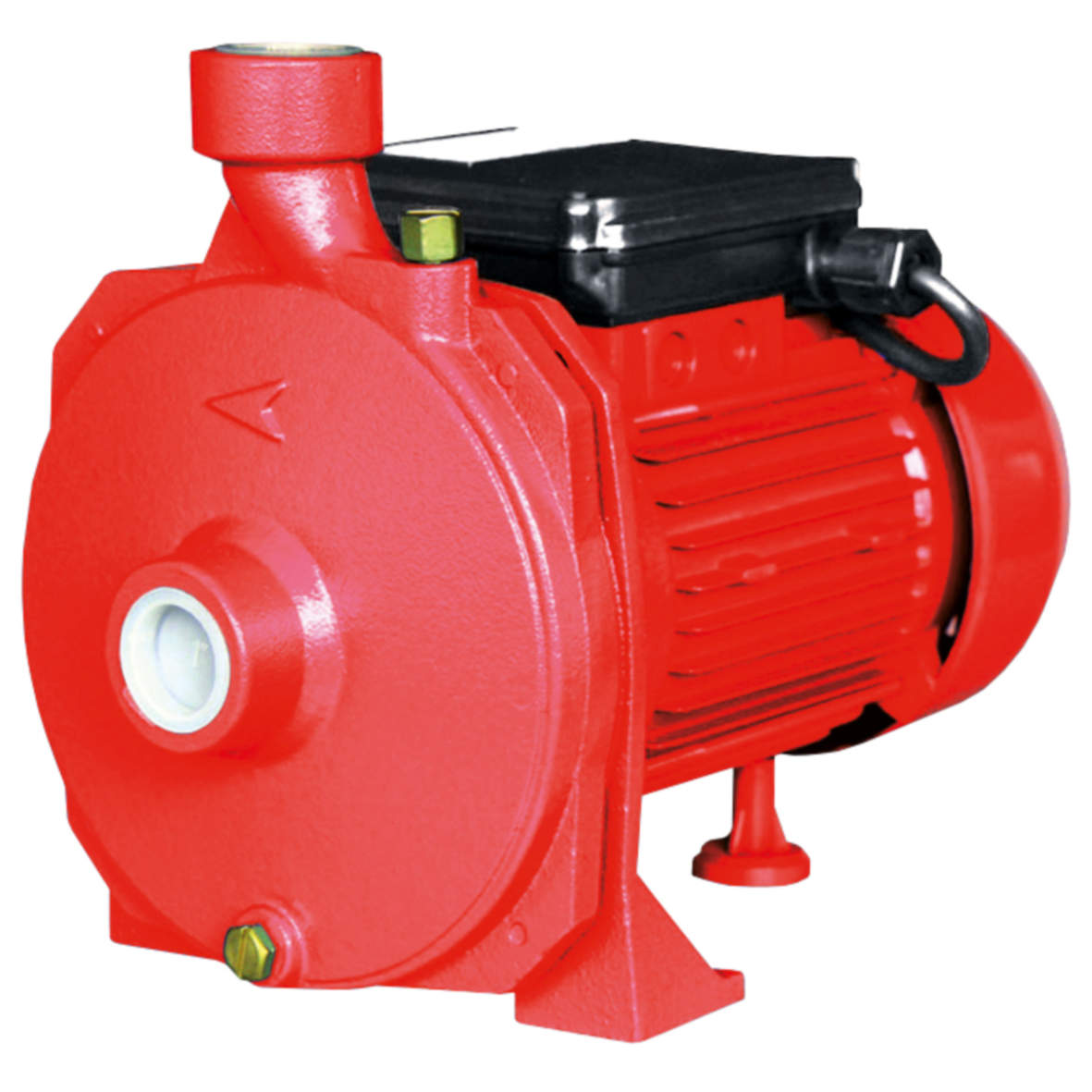

Centrifugal Electric Pump W 550 EC550 is a versatile pump for transferring clean water in domestic, agricultural and light industrial applications where medium flow rates and moderate heads are required. The motor with 550 W input and 370 W output power, combined with the centrifugal hydraulic part, provides a maximum head of around 18 metres and suction up to about 8 metres, with operating pressure within the range indicated in the technical data. With a weight of about 8.8 kg and copper motor, it is supplied with power cable without plug so it can be integrated into different systems. It is suitable for supplying tanks, irrigating gardens, filling reservoirs and generally moving water where constant and reliable performance is needed.
Technical documentation notice
Tutti i manuali e la documentazione scaricabili da questa pagina si riferiscono esclusivamente all’ultimo Anno-Lotto di produzione. Se hai dubbi sulla versione in tuo possesso o non trovi l’articolo che cerchi contact us directly.
