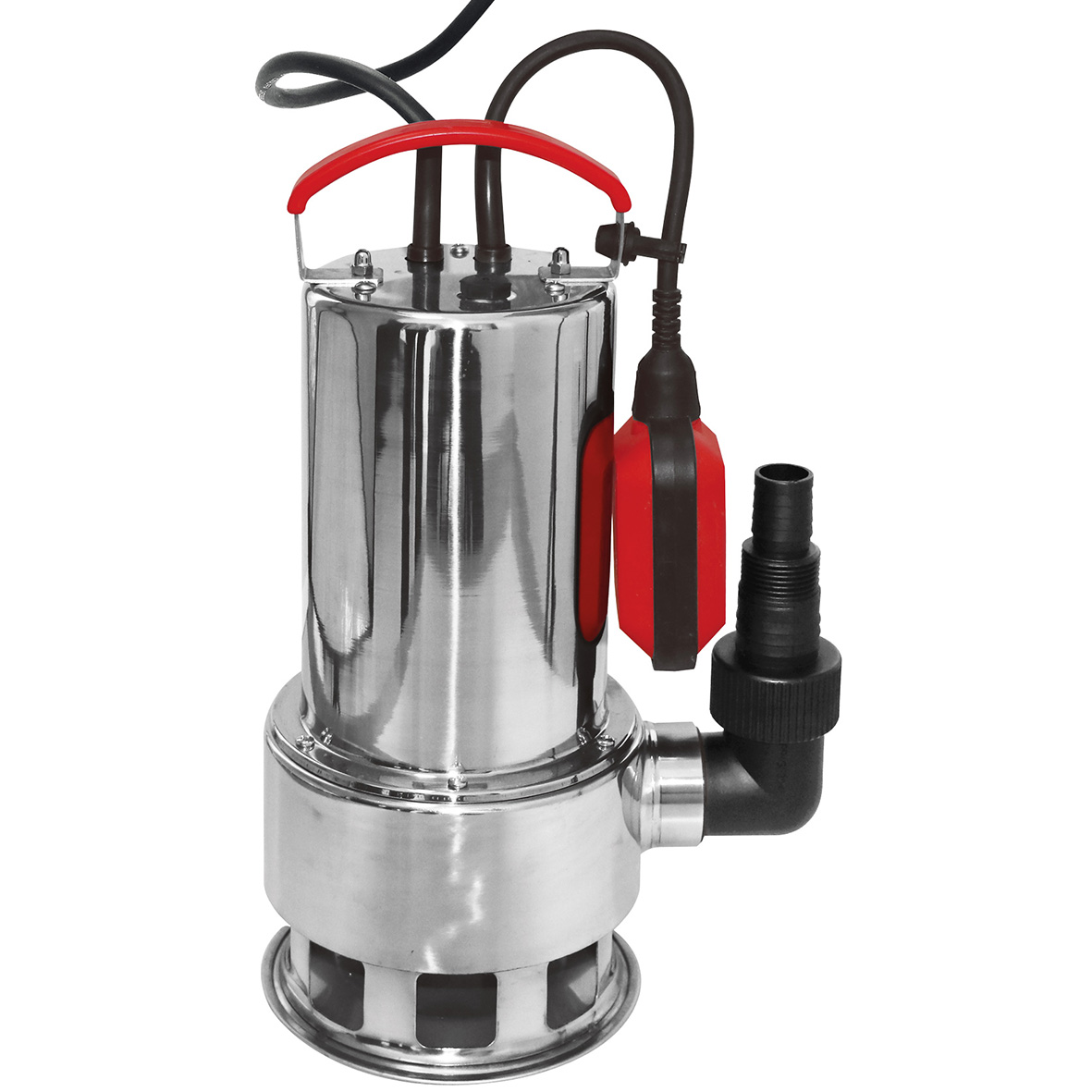

SUBMERSIBLE ELECTRIC PUMP INOX DIRTY&GO W 900

Technical details


900 watt - automatic - stainless steel body - 9 m head - 7 m depth - max flow rate 235 l/min - dirty water: solid particles up to 5 mm - hose connection 1" and 1 1/2" - 10 m cable length

Documentation *
download all
CDF code model Product EAN code Ferrari Code Machieraldo Code Vianello Code packaging
CDF11873 ZXW900zx-INOX ELECTRO-PUMP INOX DIRTY&GO W 900 8033266118730 470575 22707 74608 Cardboard box
Certifications
CE 2.png
Environmental labeling

Discover all the instructions for proper packaging disposal.

Description


Submersible Electric Pump INOX Dirty&Go W 900 is aimed at those who require performance and robustness in the frequent handling of dirty water from large tanks or flooded areas. The 900 W automatic motor, combined with a stainless steel body, offers a generous head and maximum immersion similar to the other models in the range and is capable of processing liquids with suspended solids within the limits indicated in the technical data. The pump is supplied with fittings for one inch and one and one half inch hoses and a ten metre cable, facilitating installation in collection pits and wells. It is an ideal solution for farms, construction sites and intensive domestic use where reliability and capacity are essential.


* Warning regarding the technical documentation

Tutti i manuali e la documentazione scaricabili da questa pagina si riferiscono esclusivamente all’ultimo Anno-Lotto di produzione. Se hai dubbi sulla versione in tuo possesso o non trovi l’articolo che cerchi contact us directly.
