BATTERY PRUNER 21V PB3000

Technical details


Brushless motor - power supply 21V - lithium battery 2 Ah - steel blade SK5 - maximum cutting diameter 30 mm - three cutting adjustments: 15 mm, 25 mm, 30 mm - autonomy 500/700 cuts, fully charged - safety switch - counting cutting display - charging time 60-70 min - 2 Ah battery and 2 A charger included - BMC - weight 1.2 kg

Documentation *
download all
CDF code model Product EAN code Ferrari Code Machieraldo Code Vianello Code packaging
CDF02658 CD618 CESOIA POTATO BATTERY 21V PB3000 8033266026585 Not Available Not Available Not Available Cardboard box
Certifications
CE 2.png
Environmental labeling

Discover all the instructions for proper packaging disposal.

Description

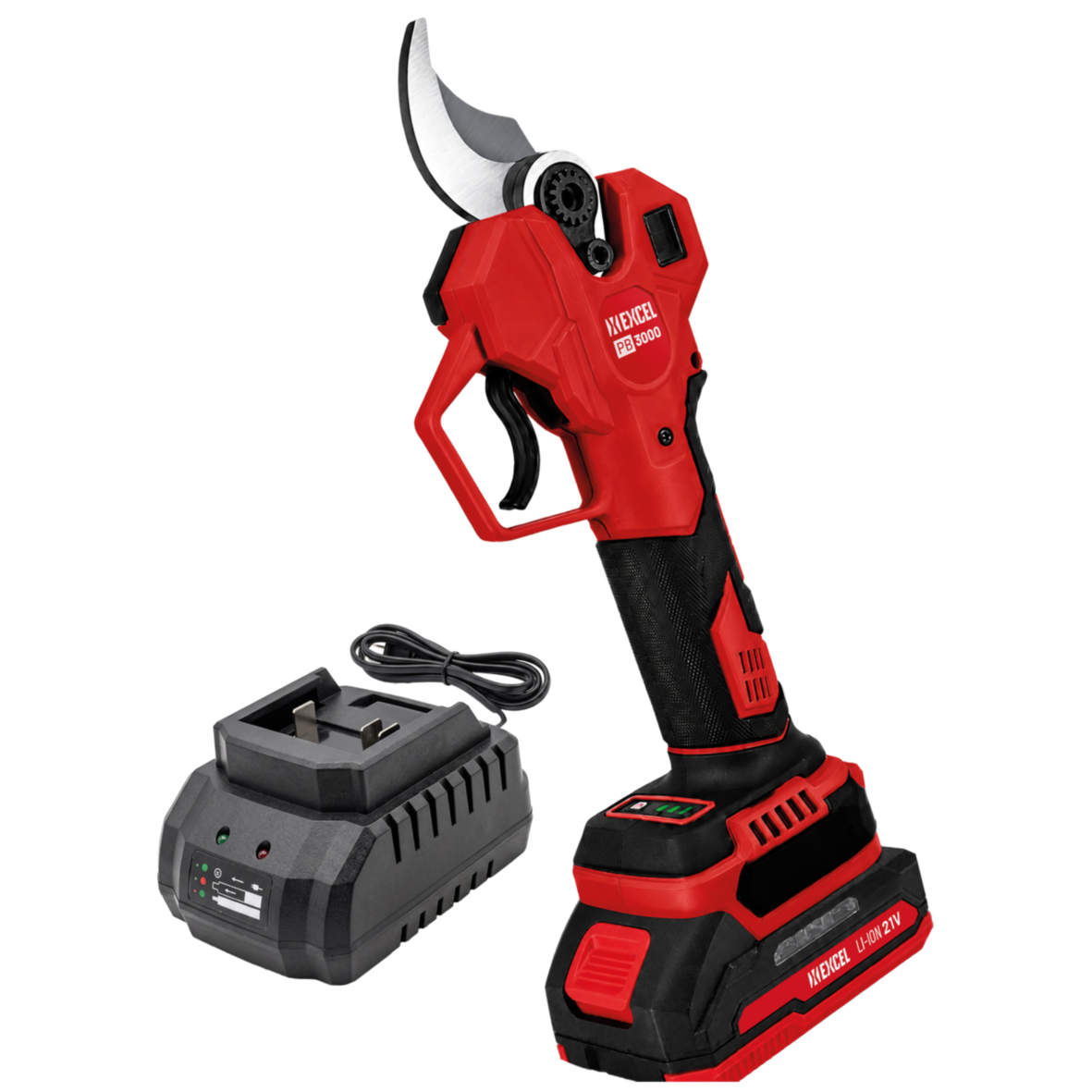

The EXCEL PB3000 battery pruner is powered at 21 V and features a brushless motor. Its SK5 steel blade cuts branches up to 30 mm in diameter, with three opening settings of 15, 25 and 30 mm to suit different branch sizes. The 2 Ah lithium battery provides an indicative capacity of 500-700 cuts on a full charge and takes approximately 60-70 minutes to recharge. A built-in display shows the cut count, while the safety switch controls tool activation. The package includes one 2 Ah battery, a 2 A charger and a carrying case. Weighing 1.2 kg, the pruner combines the cutting tool and battery power supply in a portable configuration for pruning work.


* Warning regarding the technical documentation

Tutti i manuali e la documentazione scaricabili da questa pagina si riferiscono esclusivamente all’ultimo Anno-Lotto di produzione. Se hai dubbi sulla versione in tuo possesso o non trovi l’articolo che cerchi contact us directly.
