Technical details
FL Type - HP 1.0 - kW 0.75 - bar 8 - L/min 168 - rpm 2850 - weight kg 19 - dimensions cm 60x25.5 h 61 - tank mm 240x430, capacity L 24 (operating volume L 22), thickness mm 2.3 - cylinder mm 57.8 - stator mm 70x2 - direct front and rear outlet - CE valve - pressure regulator - 2 pressure gauge - 1 euro quick coupling - handle L - trolley wheels diameter 5" - charging time approx. 105±5 seconds
| CDF code | model | Product | EAN code | Ferrari Code | Machieraldo Code | Vianello Code | packaging |
|---|---|---|---|---|---|---|---|
| CDF02696 | 0.75 HP 24-inch W-Series motor | COMPRESSORE COASSIALE OILLESS L 24 SIL25 | 8033266026967 | Not Available | Not Available | Not Available | Cardboard box |
Description

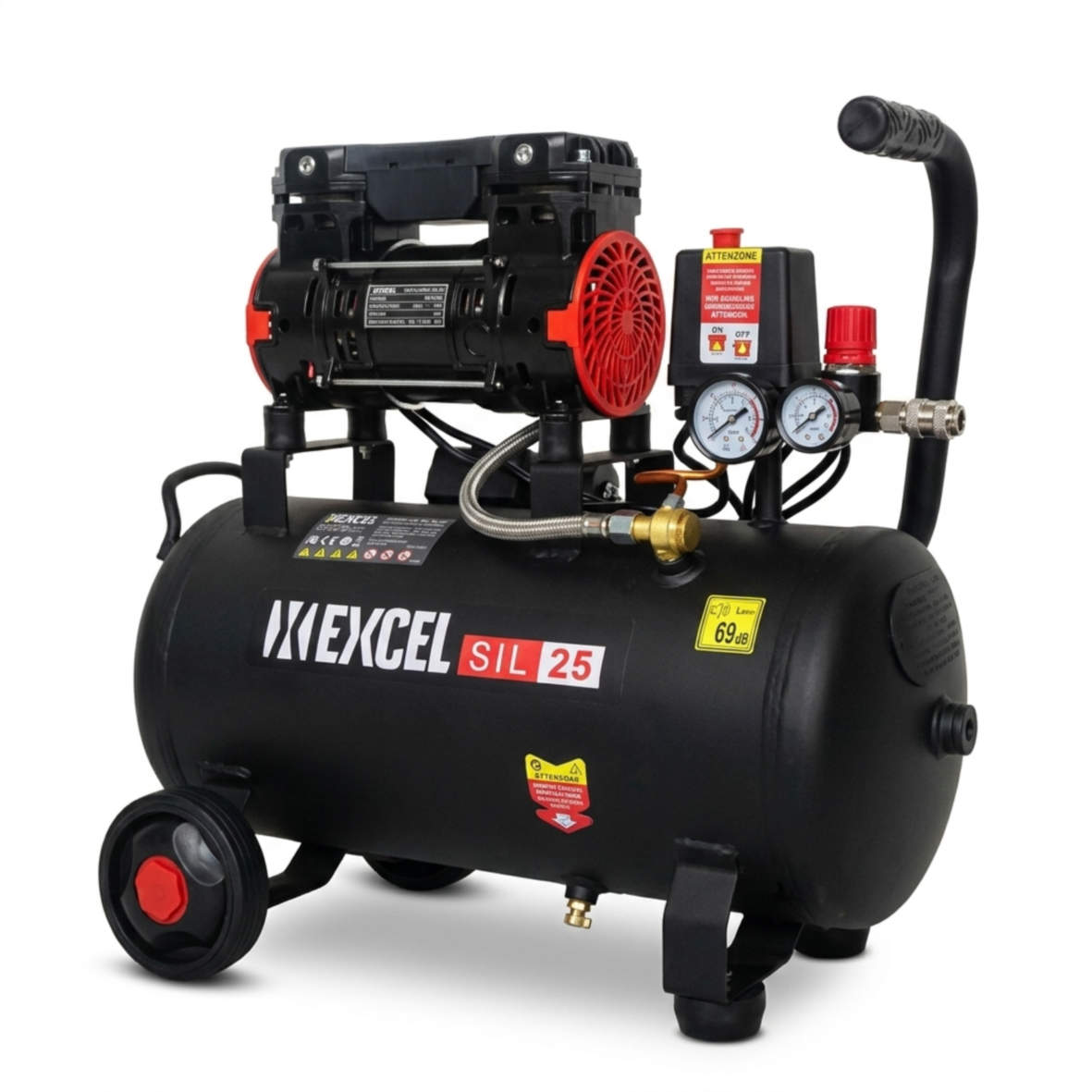

The EXCEL oilless coaxial compressor has a 24 litre tank with an operating volume of 22 litres and works at a maximum pressure of 8 bar. Its 1 HP, 0.75 kW motor runs at 2850 rpm and provides a stated air flow of 168 l/min. The oil-free configuration removes tasks associated with lubricant management. A pressure regulator and two pressure gauges allow operating values to be monitored, while the Euro quick coupling supports fast connection of compatible accessories. The unit has direct outlets at both the front and rear. A handle and 5-inch trolley wheels assist with moving the 19 kg compressor, which measures 60 × 25.5 × 61 cm. The stated tank filling time is approximately 105 ± 5 seconds.
Technical documentation notice
Tutti i manuali e la documentazione scaricabili da questa pagina si riferiscono esclusivamente all’ultimo Anno-Lotto di produzione. Se hai dubbi sulla versione in tuo possesso o non trovi l’articolo che cerchi contact us directly.
